v6プラスサービスで固定IPとMAP-Eによるマルチホーム化を試みる（その２）
v6プラスの固定IPサービスでのSubnet IDの取り扱い
v6プラスのMAP-Eでは、Subnet IDの使い方に制約があり、IPv6でのネットワーク分割を行うにはかなりトリッキーな設定を行わなければならなかったが、固定IPサービスでも同じ制約に悩まされた．
MAP-Eと同じ方法で制約を回避することができたので、その実装方法を例示する．
先ずは『v6プラス 「固定IPサービス」 設定ガイド』の内容に従って、固定IP接続の設定を行う．
...
!
ip ufs-cache max-entries 20000
ip ufs-cache enable
ip route default Tunnel0.0
ip dhcp enable
!
ipv6 ufs-cache max-entries 10000
ipv6 ufs-cache enable
ipv6 dhcp enable
!
ipv6 access-list block-list deny ip src any dest any
ipv6 access-list dhcpv6-list permit udp src any sport any dest any dport eq 546
ipv6 access-list dhcpv6-list permit udp src any sport any dest any dport eq 547
ipv6 access-list icmpv6-list permit icmp src any dest any
ipv6 access-list tunnel-list permit 4 src any dest any
ipv6 access-list other-list permit ip src any dest any
ipv6 access-list dynamic cache 65535
ipv6 access-list dynamic dflt-list access other-list
!
ddns enable
!
proxy-dns ip enable
proxy-dns ip request both
!
ip dhcp profile dhcpv4-sv
dns-server 192.168.1.1
!
ipv6 dhcp client-profile dhcpv6-cl
option-request dns-servers
ia-pd subscriber GigaEthernet1.0 ::/64 eui-64 <=== Subnet ID は 0
!
ipv6 dhcp server-profile dhcpv6-sv
dns-server dhcp
!
ddns profile ddns-v6plus-profile
url http://fcs.enabler.ne.jp/update
query user=A01234567&pass=*********
transport ipv6
notify-interface GigaEthernet1.0
source-interface GigaEthernet1.0
update-interval 10
!
interface GigaEthernet0.0
no ip address
ipv6 enable
ipv6 traffic-class tos 0
ipv6 dhcp client dhcpv6-cl
ipv6 filter dhcpv6-list 1 in
ipv6 filter icmpv6-list 2 in
ipv6 filter tunnel-list 3 in
ipv6 filter block-list 100 in
ipv6 filter dhcpv6-list 1 out
ipv6 filter icmpv6-list 2 out
ipv6 filter tunnel-list 3 out
ipv6 filter dflt-list 100 out
no shutdown
!
interface GigaEthernet1.0
ip address 192.168.1.1/24
ip dhcp binding dhcpv4-sv
ipv6 enable
ipv6 interface-identifier 00:3b:xx:yy:f0:00:00:00 <=== 指定された Interface ID
ipv6 dhcp server dhcpv6-sv
ipv6 nd ra enable
ipv6 nd ra other-config-flag
no shutdown
!
interface Tunnel0.0
tunnel mode 4-over-6
tunnel destination 2404:9200:225:100::65 <=== 指定されたBRのIPv6アドレス
tunnel source GigaEthernet1.0
ip address 59.XXX.YYY.ZZZ/32 <=== 指定されたIPv4固定IPアドレス
ip tcp adjust-mss auto
ip napt enable
no shutdown
!
ix2215-01(config)# show ipv6 addr
Interface GigaEthernet0.0 is up, line protocol is up
Global address(es):
240b:xxxx:yyyy:f400:: prefixlen 56 anycast
Link-local address(es):
fe80::260:b9ff:fee2:4624 prefixlen 64
fe80:: prefixlen 64 anycast
...
Interface GigaEthernet1.0 is up, line protocol is up
Global address(es):
240b:xxxx:yyyy:f400:3b:zzzz:f000:0 prefixlen 64
Valid lifetime 13920, preferred lifetime 12120
240b:xxxx:yyyy:f400:: prefixlen 64 anycast
Link-local address(es):
fe80::3b:zzzz:f000:0 prefixlen 64
fe80:: prefixlen 64 anycast
ix2215-01(config)# show ddns <=== IPv6 prefix変更通知
profile-name : ddns-v6plus-profile
Registered time : 2025/12/13 09:53:54
IPv6 address : 240b:xxxx:yyyy:f400:3b:zzzz:f000:0
result
HTTP/1.1 200 OK
Date: Sat, 13 Dec 2025 00:53:54 GMT
Content-Type: text/plain; charset=UTF-8
Content-Length: 2
Connection: close
Server: Apache
Cache-Control: no-cache, private
Set-Cookie: XSRF-TOKEN=ox1JyZPtIskx ... KcILwP8xN1VXhz; expires=Sat, 13-Dec-2025 02:53:54 GMT; Max-Age=7200; path=/
Set-Cookie: laravel_session=eyJpdiI6 ... gifQ%3D%3D; path=/; httponly
X-Content-Type-Options: nosniff
X-XSS-Protection: 1; mode=block
OK
ix2215-01(config)# show int Tunnel0.0
Interface Tunnel0.0 is up
Fundamental MTU is 1460 octets
Current bandwidth 1G b/s, QoS is disabled
Datalink header cache type is ipv6-tunnel: 1/0 (standby/dynamic)
IPv4 subsystem connected, physical layer is up, 0:08:53
Dialer auto-connect is enabled
Inbound call is enabled
Outbound call is enabled
Dial on demand restraint is disabled, 0 disconnect
SNMP MIB-2:
ifIndex is 1208
Logical INTERFACE:
Elapsed time after clear counters 0:09:20
205 packets input, 63075 bytes, 0 errors
205 unicasts, 0 non-unicasts, 0 unknown protos
0 drops, 0 misc errors
135 output requests, 43398 bytes, 0 errors
135 unicasts, 0 non-unicasts
0 overflows, 0 neighbor unreachable, 0 misc errors
1 link-up detected, 0 link-down detected
Encapsulation TUNNEL:
Tunnel mode is 4-over-6
Tunnel is ready
Destination address is 2404:9200:225:100::65 <=== JPIX BR アドレス
Source address is 240b:xxxx:yyyy:f400:3b:zzzz:f000:0 <=== こちらのIPv6トンネルのアドレス
Source interface GigaEthernet1.0
Nexthop address is fe80::d677:98ff:fe1c:6f53
Outgoing interface is GigaEthernet0.0
Interface MTU is 1460
Path MTU is 1500
Tunnel-link cache:
d4:77:98:1c:6f:53:00:60:b9:e2:46:24:86:dd
Statistics:
205 packets input, 63075 bytes, 0 errors
135 packets output, 43398 bytes, 0 errors
Received ICMP messages:
0 errors
ix2215-01(config)#

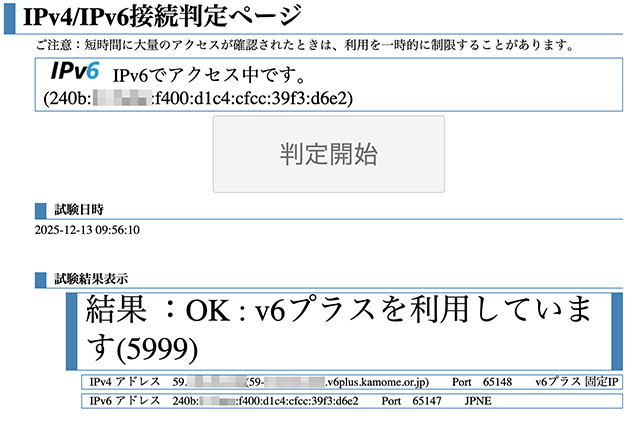

この設定では問題なく固定IPv4アドレスでの接続ができている．割り当てられた固定IPv4アドレスは今回契約しているI.S.P.のかもめインターネットが所有するアドレスのようだ．
Subnet IDが 0 の場合は問題なく接続できている
MAP-Eの場合と同様に Subnet ID を "c9"（201)とすると、やはりMAP-Eの場合と同じく接続できなくなる．
...
ipv6 dhcp client-profile dhcpv6-cl
option-request dns-servers
ia-pd subscriber GigaEthernet1.0 ::c9:0:0:0:fe/64 <=== Subnet ID "c9" (201)
!
--------
ix2215-01(config)# show ipv6 addr
Interface GigaEthernet0.0 is up, line protocol is up
Global address(es):
240b:xxxx:yyyy:f400:: prefixlen 56 anycast
Link-local address(es):
fe80::260:b9ff:fee2:4624 prefixlen 64
fe80:: prefixlen 64 anycast
...
Interface GigaEthernet1.0 is up, line protocol is up
Global address(es):
240b:xxxx:yyyy:f4c9::fe prefixlen 64 <=== Interface ID が設定されていない
Valid lifetime 14363, preferred lifetime 12563
240b:xxxx:yyyy:f4c9:: prefixlen 64 anycast
Link-local address(es):
fe80::3b:zzzz:f000:0 prefixlen 64
fe80:: prefixlen 64 anycast
...
ix2215-01(config)# show ddns
profile-name : ddns-v6plus-profile
Registered time : 2025/12/13 17:01:39
IPv6 address : 240b:xxxx:yyyy:f4c9::fe <=== 間違ったアドレスが通知されている
result
HTTP/1.1 200 OK
Date: Sat, 13 Dec 2025 08:01:40 GMT
Content-Type: text/plain; charset=UTF-8
Content-Length: 2
Connection: close
Server: Apache
Cache-Control: no-cache, private
Set-Cookie: XSRF-TOKEN=QfRSQsiInp ... ZerMJmsPdV6nLV; expires=Sat, 13-Dec-2025 10:01:40 GMT; Max-Age=7200; path=/
Set-Cookie: laravel_session=eyJpd .... ZzU1QxM0RZTA2In0%3D; path=/; httponly
X-Content-Type-Options: nosniff
X-XSS-Protection: 1; mode=block
OK
ix2215-01(config)# show int Tunnel0.0
Interface Tunnel0.0 is up
Fundamental MTU is 1460 octets
Current bandwidth 1G b/s, QoS is disabled
Datalink header cache type is ipv6-tunnel: 1/0 (standby/dynamic)
IPv4 subsystem connected, physical layer is up, 0:01:34
Dialer auto-connect is enabled
Inbound call is enabled
Outbound call is enabled
Dial on demand restraint is disabled, 0 disconnect
SNMP MIB-2:
ifIndex is 1208
Logical INTERFACE:
Elapsed time after clear counters 0:01:48
0 packets input, 0 bytes, 0 errors <=== IPv6 inboundパケットは勿論 0
0 unicasts, 0 non-unicasts, 0 unknown protos
0 drops, 0 misc errors
436 output requests, 44892 bytes, 0 errors <=== IPv6 outboundパケットはBRに流れている
436 unicasts, 0 non-unicasts
0 overflows, 0 neighbor unreachable, 0 misc errors
1 link-up detected, 0 link-down detected
Encapsulation TUNNEL:
Tunnel mode is 4-over-6
Tunnel is ready
Destination address is 2404:9200:225:100::65
Source address is 240b:xxxx:yyyy:f4c9::fe
Source interface GigaEthernet1.0
Nexthop address is fe80::d677:98ff:fe1c:6f53
Outgoing interface is GigaEthernet0.0
Interface MTU is 1460
Path MTU is 1500
Tunnel-link cache:
d4:77:98:1c:6f:53:00:60:b9:e2:46:24:86:dd
Statistics:
0 packets input, 0 bytes, 0 errors
436 packets output, 44892 bytes, 0 errors
Received ICMP messages:
0 errors
ix2215-01(config)#

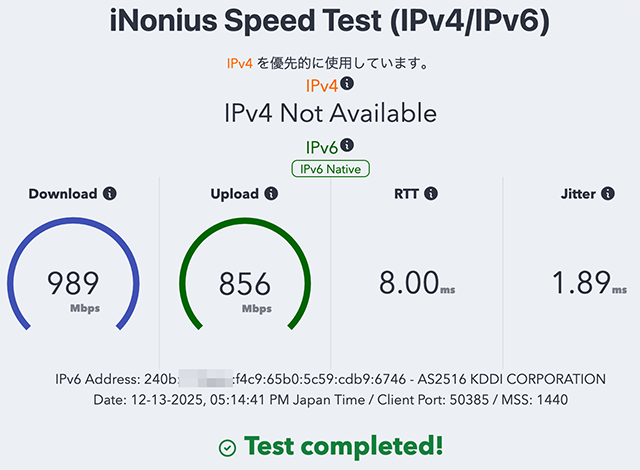

この結果から、IPv6のトンネルは outbound 方向には通じているが、inbound 方向は、こちらのルータに指定された正しいIPv6アドレスになっていない（インタフェースに設定されたIPv6アドレスしか設定されていない）．勿論、IPv6のみの通信は問題ないが、IPv4の通信ができないので使い物にはならない．
MAP-Eの場合と同様に、GigaEthernet1.0インタフェースに Subnet ID "c9" に設定した固定IPv6アドレスを設定してみる．
...
ipv6 dhcp client-profile dhcpv6-cl
option-request dns-servers
ia-pd subscriber GigaEthernet1.0 ::/64 eui-64
!
...
interface GigaEthernet1.0
ip address 192.168.1.1/24
ip dhcp binding dhcpv4-sv
ipv6 enable
ipv6 interface-identifier 00:3b:zz:zz:f0:00:00:00
ipv6 address 240b:xxxx:yyyy:f4c9::fe/64 <=== Subnet IDを指定した固定IPv6アドレスを設定
ipv6 dhcp server dhcpv6-sv
ipv6 nd ra enable
ipv6 nd ra other-config-flag
no shutdown
!

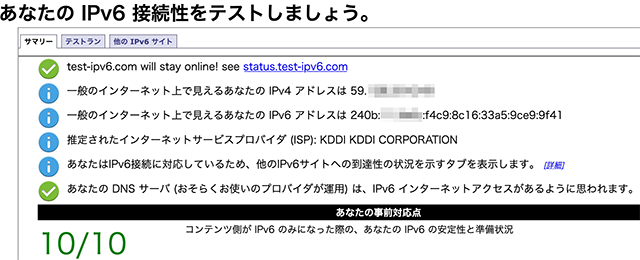

Subnet IDを設定した状態で問題なくIPv4/IPv6デュアルスタックを構成できた

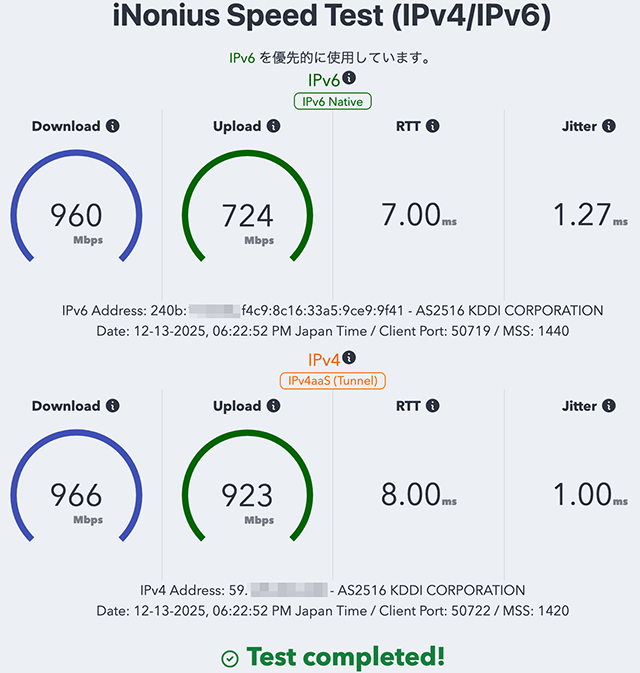

IPv4、IPv6共に問題なくアクセスできている
とりあえず、MAP-Eと固定IPともに単独では、Subnet IDで分割を行っても所望のIPv6 prefix サブネットを構築することができた．しかしながら、当初の想定したMAP-Eと固定IPを同時に併用する場合、Subnet IDを0に設定したセグメントを2つ同時には作成できないようなので、この問題を解決する方法を見出さなくてはならないだろう．
...
ipv6 dhcp client-profile dhcpv6pd-client
option-request dns-servers
option-request ntp-servers
ia-pd subscriber GigaEthernet2:1.1 ::/64 eui-64 <=== Subnet ID : 0
ia-pd subscriber GigaEthernet2:1.2 ::/64 eui-64 <=== Subnet ID : 0
ia-pd subscriber GigaEthernet2:1.3 ::ca:0:0:0:fe/64
!
上記のようなSubnet IDの割当はエラーとなってインタフェースにIPv6アドレスが設定されない．2つのインターフェースに同じ IPv6 prefix "240b:xxxx:yyyy:f400/64" を設定できない．MAP-Eと固定IPのトンネルは２つとも同じ"240b:xxxx:yyyy:f400/64"に属していなければならないので、上記で行ったような固定IPv6アドレスの設定で逃げるということもできない．
MAP-Eと固定IPのマルチホームインターネット構成のコンフィグ情報（未完成）
次に示す参考コンフィグは、固定IPv6セグメント（VL201）からのIPv6アクセスが、"240b:xxxx:yyyy:f400/64" からのoutboundコネクションとなり、本来の"240b:xxxx:yyyy:f4c9/64" でアクセスすることができていないが、とりあえずIPv4のアクセスに関しては問題ない．
v6プラスのMAP-Eと固定IPサービスを1台のルータで同時に稼働させることはかなり困難なことで、とても複雑な実装となってしまった．1つのインタフェースにIPv6のprefix が2系統あるのは不自然で、混乱のもとなのでこのようなトリッキーな構成は避けた方が良いだろう．
MAP-E系のサービスは設定が面倒で中身が複雑過ぎることと、v6プラスのMAP-Eではユーザが使えるポートが240個しかないので、メインのインターネット回線としては明らかに約不足だ．もう少しv6プラスの使い勝手を検証してみるが、検証が終わったらv6プラスとFLET'Sクロスは解約して、FLET'Sギガラインタイプに切り替える予定だ．
...
!
ip ufs-cache max-entries 20000
ip ufs-cache enable
ip route default Tunnel1.0
ip dhcp enable
ip access-list acl-dmz199 permit ip src 172.25.199.0/24 dest any
ip access-list acl-vlan200 permit ip src 172.25.200.0/24 dest any
ip access-list acl-vlan201 permit ip src 172.25.201.0/24 dest any
ip access-list acl-vlan202 permit ip src 172.25.202.0/24 dest any
ip access-list allow-outboud permit ip src any dest any
ip access-list icmp-all permit icmp src any dest any
!
!
ipv6 ufs-cache max-entries 10000
ipv6 ufs-cache enable
ipv6 dhcp enable
ipv6 access-list allow-outboud permit ip src any dest any
ipv6 access-list dhcpv6-list permit udp src any sport any dest any dport eq 546
ipv6 access-list dhcpv6-list permit udp src any sport any dest any dport eq 547
ipv6 access-list icmp6-all permit icmp src any dest any
ipv6 access-list icmp6-nd permit icmp neighbor-solicitation src any dest any
ipv6 access-list icmp6-nd permit icmp neighbor-advertisement src any dest any
ipv6 access-list icmp6-nd permit icmp redirect src any dest any
ipv6 access-list icmp6-nd permit icmp echo-reply src any dest any
ipv6 access-list icmp6-nd permit icmp echo src any dest any
ipv6 access-list ip-tunnel-allow permit 4 src any dest any
ipv6 access-list dynamic cache 65535
ipv6 access-list dynamic dyn-outbound access allow-outboud
!
!
proxy-dns ip enable
proxy-dns ip request both
!
usbmem enable
!
ssh-server ip enable
!
http-server username admin
http-server ip enable
!
ddns enable
!
route-map rtmap200-mape permit 10
match ip address access-list acl-vlan200
set interface Tunnel0.0
!
route-map rtmap201-fixed permit 10
match ip address access-list acl-vlan201
set interface Tunnel1.0
!
ip dhcp profile vlan200profile
assignable-range 172.25.200.101 172.25.200.199
subnet-mask 255.255.255.0
default-gateway 172.25.200.254
dns-server 172.25.200.254
domain-name vl200.home.yoko
lease-time 86400
!
ip dhcp profile vlan201profile
assignable-range 172.25.201.101 172.25.201.199
subnet-mask 255.255.255.0
default-gateway 172.25.201.254
dns-server 172.25.201.254
domain-name vl201.home.yoko
lease-time 86400
!
ip dhcp profile vlan202profile
assignable-range 172.25.202.101 172.25.202.199
subnet-mask 255.255.255.0
default-gateway 172.25.202.254
dns-server 172.25.202.254
domain-name vl202.home.yoko
lease-time 86400
!
ipv6 dhcp client-profile dhcpv6pd-client
option-request dns-servers
ia-pd subscriber GigaEthernet2:1.1 ::c8:0:0:0:fe/64
ia-pd subscriber GigaEthernet2:1.2 ::/64 eui-64
!
ipv6 dhcp server-profile dhcpv6pd-sv200
dns-server dhcp
!
ipv6 dhcp server-profile dhcpv6pd-sv201
dns-server dhcp
!
ddns profile ddns-v6plus-profile
url http://fcs.enabler.ne.jp/update
query user=A01234567&pass=*********
transport ipv6
notify-interface GigaEthernet2:1.2
source-interface GigaEthernet2:1.2
update-interval 10
!
device GigaEthernet0
!
device GigaEthernet1
!
device GigaEthernet2
vlan-group 1 port 1 2 3 4
vlan-group 2 port 5 6
vlan-group 3 port 7 8
!
device BRI0
isdn switch-type hsd128k
!
device USB0
no shutdown
!
interface GigaEthernet0.0
description FLET'S X DHCP-PD
no ip address
ipv6 enable
ipv6 dhcp client dhcpv6pd-client
ipv6 traffic-class tos 0
ipv6 filter dhcpv6-list 1 in
ipv6 filter icmp6-all 2 in
ipv6 filter icmp6-nd 4 in
ipv6 filter ip-tunnel-allow 5 in
ipv6 filter reject-all 100 in
ipv6 filter dhcpv6-list 1 out
ipv6 filter icmp6-all 2 out
ipv6 filter ip-tunnel-allow 5 out
ipv6 filter dyn-outbound 100 out
no shutdown
!
interface GigaEthernet1.0
description DMZ
ip address 172.25.199.254/24
shutdown
!
interface GigaEthernet2.0
no ip address
shutdown
!
interface BRI0.0
encapsulation ppp
no auto-connect
no ip address
shutdown
!
interface USB-Serial0.0
encapsulation ppp
no auto-connect
no ip address
shutdown
!
interface GigaEthernet2:1.1
description v6plus-mape
encapsulation dot1q 200 tpid 8100
auto-connect
ip address 172.25.200.254/24
ip dhcp binding vlan200profile
ip policy route-map rtmap200-mape
ipv6 enable
ipv6 address 240b:xxxx:yyyy:f400:6a:zzzz:6c00:f400/64
ipv6 dhcp server dhcpv6pd-sv200
ipv6 nd ra enable
ipv6 nd ra other-config-flag
no shutdown
!
interface GigaEthernet2:1.2
description v6plus-Fixed-IPv4
encapsulation dot1q 201 tpid 8100
auto-connect
ip address 172.25.201.254/24
ip dhcp binding vlan201profile
ipv6 enable
ipv6 interface-identifier 00:3b:zz:zz:f0:00:00:00
ipv6 address 240b:xxxx:yyyy:f4c9::fe/64
ipv6 dhcp server dhcpv6pd-sv201
ipv6 nd ra enable
ipv6 nd ra other-config-flag
no shutdown
!
interface GigaEthernet2:3.0
description VLAN250-Admin
ip address 172.25.250.253/24
no shutdown
!
interface Loopback0.0
no ip address
!
interface Null0.0
no ip address
!
interface Tunnel0.0
description JPIX v6plus MAP-E
tunnel mode map-e
ip address map-e
ip tcp adjust-mss auto
ip napt enable
no shutdown
!
interface Tunnel1.0
description JPIX IPoE Fixed IP
tunnel mode 4-over-6
tunnel destination 2404:9200:225:100::65
tunnel source GigaEthernet2:1.2
ip address 59.XXX.YYY.ZZZ/32
ip tcp adjust-mss auto
ip napt enable
no shutdown
!
